DCN - CS6510-48S6Q-HI(R3)

DCN - Data Center Switches

40G Advance Enhanced Datacenter Switch (48*10GbE(SFP+) +6*40GbE(QSFP)) , Redundant and modular Design, High performance. Full L3 features, Default with two hot-swap AC power supply, Default with 5 (4+1) fans, Broadcom chipset

DCN- Yunke China Information Technology Limited

Yunke China Information Technology Limited, as subsidiary of Digital China (Parent company) Group (Stock code: SZ000034), is a leading data communications equipment and solution provider. Deriving from Lenovo, DCN was launched into the network market in 1997 with company philosophy of “Client-oriented, Technology-driven and Service-preference”.

DCN focuses on data communication field with full product lines, including Switch, Wireless, Router, Security firewall and multi-core edge, storage and Cloud services. With continues invest on R&D, DCN is the leading IPv6 solution provider, the first Chinese company won IPv6 Ready Gold certificate and first manufacturer won OpenFlow v1.3 Certificate.

DCN provides product and solution to 60+ countries worldwide, and have established represent and service center at CIS, Europe, Asia, North America, South America and Middle East regions. DCN serves clients successfully from Education, Government, Operators, ISP, Hospitality, and SMB.

Based on independent development and sustainable innovation, DCN is continuous to provide network solution with intelligent, reliable and integrated network products and quality service for the clients.

Download DCN Network Profile
Key Features and Highlights

CS6510-48S6Q-HI Overview

CS6510-48S6Q-HI data center 40G switch uses advanced hardware and software architecture design, supporting built-in modular 1+1 redundant power supplies, 4+1 redundant fans, cross ventilation, and wind direction adjustability. It has 48*10GE SFP+ ports and 6*40G QSFP+ ports, making it ideal for cloud computing data center server access and core switching for small to medium datacenters. It can also be deployed at aggregation or core layers for high performance and reliability.

Expertise Wave img Placholder

Key Features

  • High Performance and Scalability:
    • Wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6.
    • Hot-pluggable 1G/10G SFP+ transceivers, supporting up to 300m (multi-mode) or 10-40km (single-mode) fiber.
  • High Reliability:
    • 1+1 redundant power supplies and 4+1 redundant fans for uninterrupted operation.
    • System supports dual images for backup and fast recovery.
  • VSF (Virtual Switch Framework):
    • Supports VSF for stacking, enhancing flexibility and scalability of datacenter networks.
  • Flex Resource:
    • Allows dynamic allocation, recovery, and reallocation of hardware resources to maximize utilization.
  • OpenFlow:
    • Supports OpenFlow 1.0 for SDN, ideal for building SDN test-beds for research and large ISPs/operators.
  • Rich L3 Features:
    • Supports IP routing, RIP, OSPF, BGP, and Policy Based Routing (PBR) for dynamic and flexible network design.
  • MPLS/VPLS:
    • Supports MPLS L3 VPN/L2 VPN for secure and extendable networks, with up to 255 VRF instances.
  • Abundant IPv6 Support:
    • Full IPv6 switching and routing, passed IPv6 Phase II certification for future-proof deployment.
  • Strong Multicast:
    • Advanced multicast features: IGMPv1/v2/v3, PIM-DM/SM/SSM, MSDP, MVR, multicast receiver/sender control, and illegal multicast detection.
Specifications

CS6510-48S6Q-HI Technical Specifications

Physical port 48 × 10G SFP+ and 6 × 40G QSFP
Management port Console port RJ45/10/100/1000Mbps RJ45 Ethernet Management port/USB2.0 Management port
Performance Switching Capacity: 1.44Gbps
Forwarding Rate: 1071Mpps
MAC Address 96K (standard)/32K (route)/28K (bridge), UFT configuration, default is standard
ARP Table 16K
Routing Table 16K for IPv4, 8K for IPv6
Physical Dimension (W*H*D) 433.8mm × 44mm × 550mm
Relative Humidity 10%~90% non-condensing
Temperature Working: 0°C~50°C, Storage: -40°C~75°C
Power Input AC: 100~240V, 50~60 Hz
Power Supply 1+1 Modular Redundant
Main Features
  • IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3z (1000BASE-X)
  • IEEE 802.3ab (1000Base-T), IEEE 802.3ae (10GBase), IEEE802.3x
  • IEEE 802.3ak (10GBASE-CX4)
  • IEEE 802.3ba
  • 12k Jumbo Frame, Port Loopback Detect, LLDP and LLDP-MED, UDLD, 802.3ad LACP, max 128 group trunks with max 8 ports for each trunk, LACP Load Balance
  • N:1 Port Mirroring, RSPAN (Remote mirroring), ERSPAN
  • IEEE 802.1d (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP)
  • Root Guard, BPDU Guard, BPDU Tunnel
  • 802.1Q, 4096 active VLAN, VLAN-trunking
  • MAC VLAN, VOICE VLAN, PVLAN (Private VLAN), Protocol VLAN, Multicast VLAN
  • QinQ, Selective QinQ, Flexible QinQ
  • GVRP, N:1 VLAN Translation
  • Broadcast / Multicast / Unicast Storm Control
  • IGMP v1/v2/v3 Snooping and L2 Query, ND Snooping, MLD v1/v2 Snooping
  • Port Security, MAC limit
  • Flow control: HOL, IEEE802.3x, Bandwidth Control
  • MRRP, ERPS with multiple rings
  • Static Routing, RIP v1/v2, OSPF v2, BGP4/OSPF v3, BGP4+OSPF, Multiple Process, LPM Routing, Policy-based Routing (PBR) for IPv4 and IPv6, VRRP, URPF, ECMP, BFD
  • IGMP v1/v2/v3, IGMP Proxy, DVMRP, PIM-DM, PIM-SM, PIM-SSM, any cast RP, MSDP, Static Multicast Route, Multicast Receive Control, Illegal Multicast Source
  • ARP Guard, Local ARP Proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit, Anti ARP Cheat, Anti ARP Scan
  • DNS Client, GRE Tunnel
  • 6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel, ICMPv6, ND, DNSv6, LPM Routing, IPv6 Policy-Based Routing (PBR), IPv6 VRRP, IPv6 URPF, IPv6 RA/Flag, OSPF v3, BGP4+MLD Snooping, IPv6 multicast VLAN, MLD v1/v2, PIM-SM/DM for IPv6, IPv6 Anycast RP, IPv6 ACL, IPv6 QoS
  • MPLS, VPLS, LDP
  • MPLS L3 VPN, MPLS L2 VPN (VPWS, VPLS), VPLS
  • 8 Queues, WRR/SP+WRR, SP, WRR, DWRR, SDWRR, WRED, Traffic Classification Based on 802.1p CoS, ToS, DiffServ, DSCP, ACL, port number, Traffic Shaping, PIR/Mark/Remark
  • IP ACL, MAC ACL, IP+MAC ACL, Standard and Expanded ACL Based on source/destination IP or MAC, IP protocol, TCP/UDP port, DSCP, ToS, IP Precedence, VLAN, Tag/Untag, CoS, REDIRECT and accounting-based ACL rules can be configured to port, VLAN/Time ranged ACL
  • RADIUS for IPv4 and IPv6, TACACS+ for IPv4 and IPv6
  • DoS Attack prevention, IP/MAC Spoofing, DHCP Request Flood, DHCP/DoS, DHCP Option/Inspection, 1X, Captive Portal, MAB
  • DHCP Server/Client for IPv4/IPv6, DHCP Relay/Option 82, DHCP Snooping/Option 82
  • Traffic Analysis: CLI, WEB, Telnet, Multiple level user, SNMPv1/v2c/v3 through IPv4 and IPv6, Syslog and external Syslog server, HTTP, SSL, NMP, SNMP
  • Network Management: Dual firmware images/Configuration files, 802.3ah, OAM, 802.1ag, OAM
  • Data Center Features: VSF (Virtual Switch Framework) for stacking
Expertise Wave img Placeholder

Typical Application

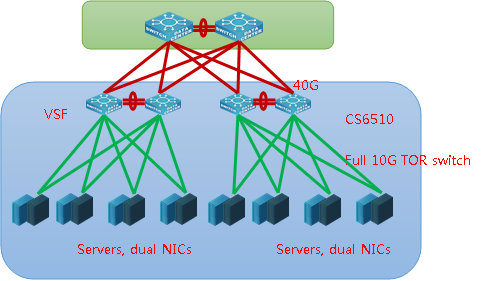

CS6510-48S6Q-HI switch work as TOR switches and connect to the core using 100GE ports.

Order Information

CS6510-48S6Q-HI Series - Order Information

Below are the available models and accessories for the CS6510-48S6Q-HI series switches.

Product Description
CS6510-48S6Q-HI 40G Advance Enhanced Datacenter Switch (48*10GbE (SFP+) +6*40GbE (QSFP+)), redundant and modular design, high performance. Full L3 features, Default with two hot-swap AC power supply, Default with 5 (4+1) fans, Broadcom chipset,warranty can be exceeded to 5 years.
