EnGenius network accessories include Sector Antennas, PoE Converters, Surge Arresters, Transceivers, and Power Adaptors, enhancing the flexibility and scalability of business networks.
EnGenius - The Power of Cloud, Now.
EnGenius Technologies is a cloud-driven leader within the connectivity space. Our mission for the past 20 years has been to deliver innovative world-class solutions for businesses of all sizes. Our team is committed to developing cutting-edge and simple-to-use designs to power your networks so you can focus on your business and customers.
As a technology leader, we are always pushing the boundaries of the possibilities in software engineering. We designed and built our cloud technology using our advanced AI engines to provide a unified platform for SD-WAN, network security, switching and wireless connectivity.
We are building a secure, cloud-centered ecosystem covering a variety of product categories, including Wireless Access Points, Network Switches, SD-WAN Gateways, and Power Distribution Units, designed to empower MSP providers with advanced feature sets, vertical market support, and ecosystem integration. With its easily scalable architecture and secured multi-tenant platform, EnGenius Cloud provides MSPs with a flexible and comprehensive solution to manage enterprise clients' networks.
Expertise Wave - Accessories

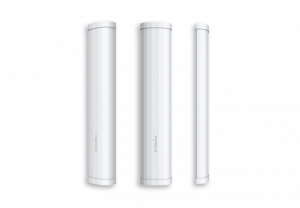

The SA2216 offers high-gain, 120-degree wireless beam performance for broad coverage. Combine with other sector antennas to create 360-degree area coverage; apply to a variety of point-to-multipoint scenarios. Supports cross-platform compatibility, via a plug-in mounting system or appropriate antenna cable.
EnGenius Sector Antenna - Model Comparison
Compare the technical specifications of EnGenius sector antennas: SA2216, SA5219, SA2312, and SA5315. Find the right antenna for your wireless deployment.
| MODEL | SA2216 | SA5219 | SA2312 | SA5315 |
|---|---|---|---|---|
| FREQUENCY | 2.3~2.7GHz | 4.9~6GHz | 2.3~2.7GHz | 4.9~6GHz |
| HARDWARE SPECIFICATIONS | ||||
| ANTENNA GAIN | 16dBi | 19dBi | 12dBi | 15dBi |
| POLARIZATION | Dual | Dual | V,V,H | H,H,V |
| VERTICAL BEAMWIDTH | 9° | 9° | 9° | 9° |
| HORIZONTAL BEAMWIDTH | 120°(6dB) | 120°(6dB) | 120°(6dB) | 120°(6dB) |
| MAX. VSWR | 2:1 | 2:1 | 2:1 | 2:1 |
| CROSS-POL ISOLATION | 25dB | 25dB | 25dB | 25dB |
| IMPEDANCE | 50 ohms | 50 ohms | 50 ohms | 50 ohms |
| MECHANICAL SPECIFICATIONS | ||||
| ANTENNA PORT/TYPE | 2 / N Type Plug Female |
2 / N Type Plug Female |
3 / N Type Plug Female |
3 / N Type Plug Female |
| WEIGHT | 5kgs / 11lbs | |||
| DIMENSION (WxDxH) | 150 x 66 x 740 in mm / 5.9 x 2.6 x 29.13 in inch | |||
| TEMPERATURE | Operating: -20°~70° C (~4~158°F) Storage: -30°~80°C (~22~176°F) |
|||
| HUMIDITY | Operating: 0-90%; Storage: 0-95% | |||
| WIND SURVIVABILITY | 125mph | |||
| COMPATIBLE RADIO PLATFORM | ||||
| AP MOUNT BRACKET | EnGenius APs (ENS202EXT and ENS500EXT) & UBNT rocket*M | |||
| N-TYPE CONNECTORS | EnGenius and Any Outdoor APs with N-type Connectors | |||
Expertise Wave - Convertors

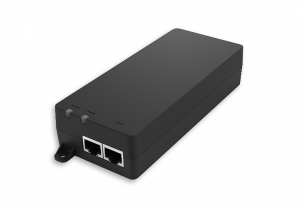

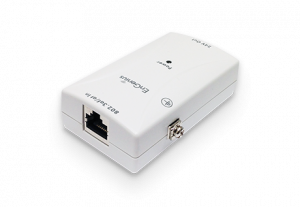

The EPD-4824 Converter is designed to work with EnGenius ENS202, ENS202EXT, ENS500EXT, ENH500EXT, ENH202, and ENH500 wireless outdoor APs. With a power output of up to 24W, the EPD-4824 gives network administrators, IT managers, and installers the option to place PoE-client devices outdoors where power outlets are scarce.
EnGenius EPD-4824 PoE Converter - Product Highlight
Detailed technical specifications for the EnGenius EPD-4824 PoE Converter. Review standards, protocol, ports, data lines, power, and temperature ratings.
| Product Highlight | |
|---|---|
| Standards | IEEE802.3 10Base-T, IEEE802.3u 100Base-T |
| Protocol | CSMA/CD |
| Ports |
1 x RJ-45 Connector for 802.3af/at Power input 1 x RJ-45 Connector for 24V Power output (1A for 802.3at, 0.5A for 802.3af) |
| Data Lines | Pin1, Pin2, Pin3, Pin6 |
| Power |
Input : 802.3af/at Output : 24V, (1A for 802.3at, 0.5A for 802.3af) Pin4, Pin5, Pin7, Pin8 |
| Temperature |
Operation Temperature : -0°C ~ 60°C Storage Temperature : -20°C ~ 70°C |
Expertise Wave - Surge Arresters

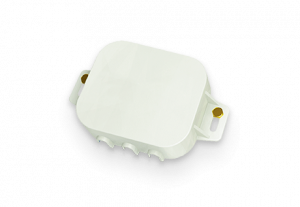

The EGS-1000 is a 10/100/1000Mbps Ethernet Surge Arrester designed to protect network devices from power surges and lightning strikes. It features a compact design, easy installation, and is compatible with various EnGenius outdoor access points and other network devices.
EGS-1000 Ethernet Surge Arrester - Technical Specifications
Detailed product specifications for the EGS-1000 Ethernet Surge Arrester. Review cable support, protection, components, operating conditions, and reliability.
| Ethernet Cable Support | 10/100/1000 Base-T Category 5/6 protection |
| Lightening Protection | 6KV at Line to Ground |
| PCBA components |
RJ-45 ; Surge absorber ES75XPA x 10 PCB: 2-layer FR-4 , 50x40x1.6mm EARTH PARTS INCLUDE SCREW |
| Temperature | Operating: 0°C~ +50°C ; Storage: -30°C~ +80°C |
| Humidity | 5% to 95% |
| Dimension | 130 x 78 x 50mm |
| Reliability | 25,000 hours |
EnGenius Accessories from Expertise wave in Saudi Arabia
Expertise Wave offers a comprehensive range of EnGenius accessories in Saudi Arabia, including sector antennas, PoE converters, surge arresters, transceivers, and power adaptors.
These accessories enhance the performance and reliability of EnGenius network solutions, providing businesses with the tools they need for effective wireless communication.

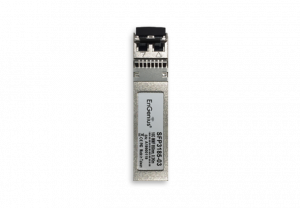

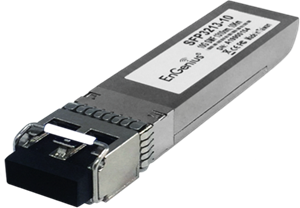

Expertise Wave - 10G Gigabit SFP+ Transceiver Modules
EnGenius 10G Small Form-Factor Pluggable Plus (SFP+) transceiver is an industry-standard hot-swappable device that plugs into the SFP port or slot and links the port with the network. It is a small form-factor pluggable module with a standard LC duplex connector for fiber communications. It is designed to comply with SFI electrical specifications.
EnGenius 10G SFP+ Transceiver Modules - Model Comparison
Compare the technical specifications of EnGenius 10G SFP+ transceiver modules: SFP3185-03 and SFP3213-10. Find the right module for your network deployment.
| SFP3185-03 | SFP3213-10 | |
|---|---|---|
| Connector Type | LC | LC |
| Data Rate | 10Gbps | 10Gbps |
| Wavelength | 850nm | 1310nm |
| Fiber Type | MMF | SMF |
| Max Transmission Distance | 0.3km | 10km |
| Transmitter Characteristics | ||
| Supply Voltage | 3.13 ~ 3.46V | 3.13 ~ 3.46V |
| Supply Current | 300mA | 300mA |
| Output Optical Power | -6.5 ~ -1dBm | -8.2 ~ 0.5dBm |
| Receiver Characteristics | ||
| Supply Voltage | 3.13 ~ 3.46V | 3.13 ~ 3.46V |
| Supply Current | 300mA | 300mA |
| Maximum Receiver Power | -3dBm | 1.5dBm |
| Optical Receiver Sensitivity | -11.1dBm | -12.6dBm |
| Physical Specifications | ||
| Dimensions (WxDxH) | 13.9 x 58.4 x 12.6mm | |
| Weight | 25g | |
| Environmental Limits | ||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
EnGenius 10G SFP+ Bi-Di Transceiver Modules - Model Comparison
Compare the technical specifications of EnGenius 10G SFP+ Bi-Di transceiver modules: SFP3312-20 and SFP3313-20. Find the right module for your network deployment.
| SFP3312-20 | SFP3313-20 | |
|---|---|---|
| Connector Type | LC | LC |
| Data Rate | 10Gbps | 10Gbps |
| Wavelength | Tx: 1270nm Rx: 1330nm |
Tx: 1330nm Rx: 1270nm |
| Fiber Type | SMF | SMF |
| Max Transmission Distance | 20km | 20km |
| Transmitter Characteristics | ||
| Supply Voltage | 3.0 ~ 3.6V | 3.0 ~ 3.6V |
| Supply Current | 300mA | 300mA |
| Output Optical Power | -2 ~ 2dBm | -2 ~ 2dBm |
| Receiver Characteristics | ||
| Supply Voltage | 3.15 ~ 3.45V | 3.15 ~ 3.45V |
| Supply Current | 300mA | 300mA |
| Maximum Receiver Power | -14.5dBm | -14.1dBm |
| Optical Receiver Sensitivity | -18dBm | -20dBm |
| Physical Specifications | ||
| Dimensions (WxDxH) | 14 x 57.5 x 10.8 mm | |
| Weight | 25g | |
| Environmental Limits | ||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
EnGenius SFP3500 10G SFP+ Fiber to Copper Module
Detailed technical specifications for the EnGenius SFP3500 10G SFP+ Fiber to Copper transceiver module.
| SFP3500 | |
|---|---|
| Connector Type | RJ-45 |
| Data Rate | 10Gbps |
| Max Transmission Distance | 30m |
| Supply Maximum Current | 900mA |
| Input Voltage | 3.13 ~ 3.47V |
| Supply Current | 300mA |
| Dimensions (WxDxH) | 13 x 68 x 13.7 mm |
| Weight | 24.5g |
| Environmental Limits | |
| Operating Temperature | 0°C to 65°C (32°F to 149°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
