10G L3 Uni P Switch (48*100/1000Base-X(SFP) + 6*10GbE(SFP+)), 2* 54VDC output with total power output 740W,1 fixed AC power supply
DCN- Yunke China Information Technology Limited
Yunke China Information Technology Limited, as subsidiary of Digital China (Parent company) Group (Stock code: SZ000034), is a leading data communications equipment and solution provider. Deriving from Lenovo, DCN was launched into the network market in 1997 with company philosophy of “Client-oriented, Technology-driven and Service-preference”.
DCN focuses on data communication field with full product lines, including Switch, Wireless, Router, Security firewall and multi-core edge, storage and Cloud services. With continues invest on R&D, DCN is the leading IPv6 solution provider, the first Chinese company won IPv6 Ready Gold certificate and first manufacturer won OpenFlow v1.3 Certificate.
DCN provides product and solution to 60+ countries worldwide, and have established represent and service center at CIS, Europe, Asia, North America, South America and Middle East regions. DCN serves clients successfully from Education, Government, Operators, ISP, Hospitality, and SMB.
Based on independent development and sustainable innovation, DCN is continuous to provide network solution with intelligent, reliable and integrated network products and quality service for the clients.
S5750X-48T6Y-SI Key Features and Highlights
S5750X series switches deliver high switching capacity, advanced L3 features, and robust multicast support, making them ideal for high-density aggregation or core layers in campus and enterprise networks. With VSF virtualization, comprehensive QoS, and enhanced IPv6 support, these switches provide reliable, scalable, and secure network solutions.
Key Features and Highlights
-
Unique integrated external power supply mode
Integrated external power supply system: The power supply system is built into the fuselage, providing one or more DC trunk cables to the optical AP side. The optical AP then accesses the trunk cable through branch cables to power itself. -
Easy-to-use management and maintenance
Support zero-touch configuration, unified management and automatic distribution of network-wide versions and configurations, without manual intervention. Simplifies user operations and improves deployment reliability. Supports power failure alarm Dying GASP function.
When the system power is lost, SNMP alarm information is triggered to notify the remote network management platform. Supports complete Ethernet OAM technology (IEEE802.3ah/802.1ag), VCT, DDM (digital diagnostic monitoring), and other features for quick fault detection and reduced maintenance difficulty. -
Flexible and comprehensive security control strategy
VLAN-based DHCP snooping and IP Source Guard.
Supports custom ACLs, flexible matching of Ethernet/IP header rules, standard 802.1X authentication, extended 802.1X authentication, and Web Portal authentication.
Multiple security protection mechanisms: SYN Flood, Land, ICMP Flood, BPDU Guard, Root Guard, anti-attack technologies, avoids unexpected topology loops and illegal edge devices, prevents unnecessary topology oscillations.
Supports both port-based and RSPAN (remote port mirroring) anti-attack measures at the user level. -
VLAN switching, diverse development
Supports common QinQ and flexible QinQ technologies, maximum freedom to configure QinQ policies.
N:1 VLAN ID switching, N:1 VLAN Translation, converting VLAN Tags of access port messages into specified VLAN Tags for QoS policy convergence.
Supports multiple VLAN types: VLAN, MAC VLAN, Voice VLAN, etc., for multi-service converged networks. -
Flexible and scalable intelligent VSF stacking technology
Supports DCN VSF virtualization, connecting multiple devices through multiple connection methods and virtualizing them into a virtual device. Ensures consistency of virtualization functions, expands number of ports, bandwidth, and forwarding processing capabilities, and fully realizes elastic expansion. -
Comprehensive functions and excellent performance
Supports static routing, RIP v1/v2, RIPv6, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing strategies for complex large-scale networking.
Supports and provides ISATAP and 6TO4 automatic tunnels, transition technologies such as IPv6 over IPv4, IPany over GREv4, and IPany over GREv6 configuration tunnels, providing a stable IPv6 transition solution. -
Multiple management and monitoring methods
Supports standard SSH, SNMP v1/v2c/v3, Security IP function, and SYSLOG for easy search and positioning. Switch can only be configured and managed in a legal IP to prevent illegal users from logging into the switch.
Real-time monitoring of network management functions: anomaly monitoring, CPU utilization, stack anomalies, etc.
S5750X-48S6X-U-SI Technical Specifications
| Item | S5750X-48S6X-U-SI |
|---|---|
| Physical port |
48 x 100/1000Base-X(SFP) 6 x 1G/10G (SFP+) ports |
| Management port |
10/100/1000M Base-T RJ45 Ethernet Management port Console port (RJ45) USB2.0 interface |
| Performance | |
| Switching Capacity | 216Gbps |
| Forwarding Rate | 161Mpps |
| MAC Address | 32K |
| Routing Table | 1K |
| L3 Interface | Max 1K |
| Physical | |
| Dimension (W*H*D) | 440mm*44mm*380mm |
| Relative Humidity | 5%~90% non-condensing |
| Temperature | Working 0°C~50°C, storage -40°C~75°C |
| Power Supply | Fixed AC |
| Power Consumption | >75W |
| DC Power Output/Budget | 740W |
| Main Features | |
| L1 Features |
Port loopback detection LLDP and LLDP-MED UDLD IEEE 802.3ad LACP, max 128 group trunks with max 8 ports for each trunk LACP load balance ERPS (G.8032) N:1 Port Mirroring RSPAN |
| L2 Features |
IEEE802.1d(STP) IEEE802.1w(RSTP) IEEE802.1s(MSTP) Root Guard BPDU Guard BPDU Tunnel IEEE 802.1Q, 4096 VLAN MAC VLAN, Voice VLAN, PLAN, Protocol VLAN, Multicast VLAN QinQ, Selective QinQ, Flexible QinQ GVRP N:1 VLAN Translation Broadcast / Multicast / Unicast Storm Control IGMP v1/v2/v3 Snooping and L2 Query ND Snooping MLDv1/v2 Snooping Port Security Flow Control HOL, IEEE802.3x Bandwidth Control |
| L3 Features |
Static Routing, RIP v1/v2, OSPFv2, BGP4 OSPFv3, BGP4+ OSPF multiple processes Policy-based routing (PBR) for IPv4 and IPv6 VRRP URPF ECMP BFD IGMP v1/v2/v3, IGMP Proxy DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDP Static Multicast Route Multicast Receive Control Illegal Multicast Source Detect ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit Anti ARP Cheat, Anti ARP Scan DNS Client, DNS Relay ICMPv6, ND, DNSv6 IPv6 Policy-based Routing (PBR) IPv6 VRRPv3, IPv6 URPF, IPv6 RA RIPng, OSPFv3, BGP4+ MLD Snooping, IPv6 Multicast VLAN MLDv1/v2, IPv6 SMDP for IPv6, IPv6 Anycast RP, IPv6 ACL, IPv6 QoS |
| QoS |
8 Queues, SP, WRR, SWRR, WDRR, SWDRR WRRED Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number Traffic Policing PRI Mark/Remark |
| ACL |
IP ACL, MAC ACL, IP-MAC ACL Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence, VLAN, Tag/Untag, CoS Redirect and Statistics Rules can be configured to port, VLAN Time Ranged ACL |
| Security |
IEEE 802.1x AAA Port, MAC-based authentication Accounting based on time length and traffic Guest VLAN and auto VLAN RADIUS for IPv4 and IPv6 TACACS+ for IPv4 and IPv6 MAB |
| DHCPv4/v6 |
DHCP Server/Client for IPv4/IPv6 DHCP Relay/Option 82 DHCP Snooping/Option 82 |
| Traffic Monitor | sFlow Traffic Analysis |
| Security Network Management |
CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6 Syslog and external Syslog Server HTTP SSL SNMP MIB, SNMP TRAP FTP/TFTP SNTP/NTP RMON 1,2,3,9 Authentication by Radius/TACACS SSH v1/v2 Dual firmware images/Configuration files 802.3ah OAM, 802.1ag OAM |
| Data Center Features | VSF (Virtual Switch Framework) |

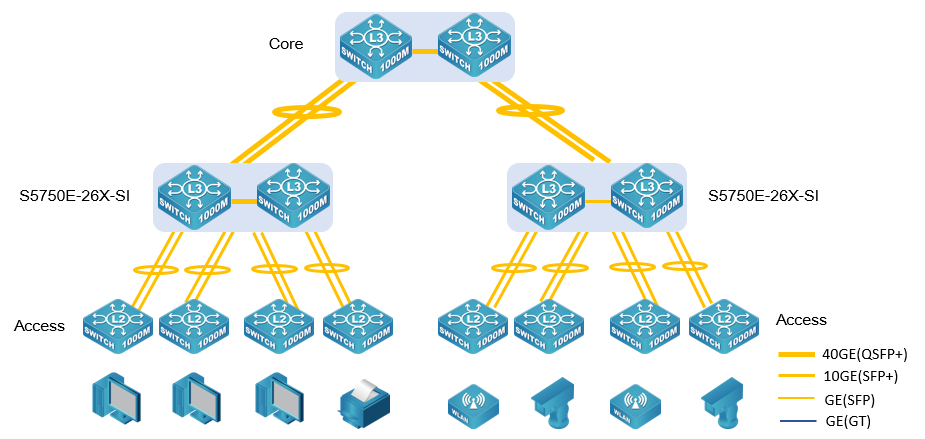

Typical Application
S5750X-48S6X-U-SI: supports 48 Gigabit SFP optical ports and 6 10G SFP+ optical ports, supports Unified external power supply system (-54V 740W), and can provide 2 power supply trunks to provide 30W power for remote APs.
Uni P: Unified Powering system, with a built-in power supply system, provides one or more DC trunk cables to the optical AP side. The optical AP is connected to the trunk cable through branch cables to power itself. The uplink ports of the optical APs are connected to the optical switch through fiber, and the optical switch side use single-core SFP modules.
S5750X-48S6X-U-SI Series - Order Information
Below are the available models and accessories for the S5750X-48S6X-U-SI series switches.
| Product | Description |
|---|---|
| S5750X-48S6X-U-SI | 10G L3 Switch (48*100/1000Base-X(SFP) + 6*10GbE (SFP+)), 2* 54VDC output with total power output 740W,1 fixed AC power supply |
